引言
在现代软件架构中，无论是模块化的单体应用、面向服务的架构（SOA），还是日益普及的微服务部署，进程间通信（Inter-Process Communication, IPC）都已从一个简单的实现细节，演变为影响系统性能、安全性与可维护性的基石性架构决策。在此背景下，选择一种合适的 IPC 机制，不仅关乎数据传输的效率，更直接决定了整个系统的响应能力、资源消耗和技术债务。在Windows平台上，有三种主流的IPC通讯方式，它们分别是：
- 命名管道（Named Pipes）：一种基于消息传递的机制，它在内核层面提供了一个结构化、可靠且安全的通信通道 。
- TCP/IP 套接字（TCP/IP Sockets）：同样基于消息传递，但其设计初衷是为网络提供服务。当用于本地环回接口时，它成为了一种 IPC 选项 。
- 内存映射文件（Memory-Mapped Files, MMF）：一种基于共享内存的机制，通过将同一块物理内存映射到多个进程的虚拟地址空间，实现了数据交换的“零拷贝” 。
在之前的文章使用命名管道进行进程间通讯、使用内存映射文件实现进程间通讯，详细介绍了其中的两种，TCP/IP通过本地环回也可以实现IPC通讯，本文对应用中常见的一对一、双向通讯场景，提供了一套功能完备的、包含连接状态管理、自动重连和日志抽象的企业级实现。并分析了各种方案的传输性能。
Windows平台IPC的基础
在深入比较具体技术之前，必须首先理解它们所依赖的操作系统底层原理。进程间通信的性能、复杂度和安全性，在很大程度上由其在内核层面的实现范式所决定。在 Windows 平台上，上述三种技术主要归结为两种根本不同的模型：消息传递（Message Passing）和共享内存（Shared Memory）。操作系统的核心职责之一是隔离进程，确保一个进程的错误不会影响到其他进程。这种隔离体现在每个进程都拥有独立的虚拟地址空间。IPC 的本质，正是在这种隔离的前提下，安全、高效地建立数据交换的桥梁 。
- 消息传递（命名管道与套接字）：消息传递模型是一种高度结构化的通信方式。当发送方进程（Process A）希望向接收方进程（Process B）发送数据时，数据会经历一次从用户空间到内核空间的拷贝，再从内核空间拷贝到接收方的用户空间。这个过程涉及两次内存拷贝和两次上下文切换，但带来了显著的优势：内核保证了数据传输的原子性和顺序性，且进程之间没有直接的内存访问，安全性高 。
- 共享内存（内存映射文件）：共享内存模型则采取了截然不同的策略。它通过将同一块物理内存映射到多个进程的虚拟地址空间，最大限度地减少了内核的干预。数据交换时，数据始终停留在用户空间，完全避免了向内核空间的数据拷贝，从而实现了极致的性能 。然而，这种模型也将数据同步的全部责任转移给了开发者。
- 同步机制：当多个进程可以同时访问同一块内存区域时，如果缺乏协调，就会发生“竞态条件”（Race Condition），导致数据损坏 。因此，任何基于共享内存的 IPC 实现都必须构建一个强大的同步协议。在 Windows 上，这意味着必须使用内核提供的同步原语，如互斥体（Mutex）和事件等待句柄（EventWaitHandle）来协调访问 。这份“同步的负担”是 MMF 极致性能所必须付出的成本。
下面简要介绍这三种技术的原理和实现。
命名管道
原理
在使用命名管道进行进程间通讯 这篇文章中已经详细介绍了命名管道。简言之命名管道（Named Pipes）提供了一种经过精心设计的、专门用于本地及局域网内进程通信的解决方案，实现了性能、安全性与易用性的高度平衡。一个命名管道是存在于命名管道文件系统（NPFS）中的一个内核对象，路径格式为 \\.\pipe\PipeName 。.NET 通过System.IO.Pipes 命名空间中的 NamedPipeServerStream 和 NamedPipeClientStream 类，将其封装成了熟悉的 Stream 接口 。
命名管道在底层并不是通过 TCP/IP 协议实现的，它们是两种完全独立且在不同层级上运行的通信机制。命名管道是 Windows 操作系统提供的一种高级 IPC 机制。它的底层实现依赖于一个特殊的、仅存在于内核内存中的文件系统驱动，称为命名管道文件系统 (Named Pipe File System, NPFS) 。当创建一个 NamedPipeServerStream 时，Windows 内核会在 NPFS 中创建一个类似于文件的对象。客户端通过这个“文件”的路径来连接。所有的读写操作最终都会被转换为对这个内核对象的 I/O 请求。这个机制是为本地和局域网内的高效 IPC 专门设计和优化的。它绕过了大部分通用网络协议栈的复杂层次，通信路径更短、更直接，因此在本地通信时，其固定开销（overhead）远低于 TCP/IP 。
命名管道与 Windows 的核心安全模型深度集成。通过 PipeSecurity 类，可以为管道设置访问控制列表（ACL），精确地定义哪些用户或用户组可以访问管道 。此外，它还支持客户端模拟（Impersonation），允许服务端进程临时以客户端的安全上下文来执行代码，这在处理权限敏感的操作时至关重要 。
命名管道支持两种传输模式：字节模式（Byte Mode）和消息模式（Message Mode）。消息模式是其最具吸引力的特性之一，因为它保证了消息边界的完整性，极大地简化了通信协议的设计 。
实现
在使用命名管道进行进程间通讯这篇文章中，介绍了通过修改一个开源的命名管道进行通讯来实现的一个类库，现在看起来有些过于复杂。现在的实现提供以下接口：
- 同步读/写：Write() 和 Read() 方法。
- 异步读/写：WriteAsync() 和 ReadAsync() 方法。
- 事件驱动读取：通过 MessageReceived 事件。
- 这种设计通过内部使用一个 BlockingCollection<byte> 作为消息缓冲区来实现，将底层的 I/O 操作与上层的消息处理逻辑解耦 。
服务端代码NamedPipeIpcServer如下：
public class NamedPipeIpcServer : IDisposable
{
private readonly string _pipeName;
private readonly BlockingCollection<byte[]> _receiveQueue = new BlockingCollection<byte[]>();
private CancellationTokenSource _cancellationTokenSource;
private readonly ILogger _logger;
private NamedPipeServerStream _currentPipeStream; // For Write operations
public event EventHandler<byte[]> MessageReceived;
public event EventHandler<ConnectionChangedEventArgs> ClientConnectionChanged;
public NamedPipeIpcServer(string pipeName, ILogger logger = null)
{
_pipeName = pipeName;
_logger = logger ?? new ConsoleLogger();
}
public void Start()
{
_cancellationTokenSource = new CancellationTokenSource();
Task.Run(() => ListenForClientsAsync(_cancellationTokenSource.Token));
_logger.Info(string.Format("Server started on pipe '{0}'.", _pipeName));
}
public void StartMessageListener()
{
Task.Run(() =>
{
foreach (var message in _receiveQueue.GetConsumingEnumerable(_cancellationTokenSource.Token))
{
OnMessageReceived(message);
}
});
}
private async Task ListenForClientsAsync(CancellationToken token)
{
while (!token.IsCancellationRequested)
{
try
{
await ProcessClientConnection(token);
}
catch (OperationCanceledException)
{
break; // Expected on shutdown
}
catch (Exception ex)
{
_logger.Error("An error occurred in the client listener loop.", ex);
await Task.Delay(1000, token); // Prevent rapid-fire error loops
}
}
_logger.Info("Server listener stopped.");
}
private async Task ProcessClientConnection(CancellationToken token)
{
var pipeSecurity = new PipeSecurity();
pipeSecurity.AddAccessRule(new PipeAccessRule(new SecurityIdentifier(WellKnownSidType.WorldSid, null), PipeAccessRights.ReadWrite, System.Security.AccessControl.AccessControlType.Allow));
using (var pipeStream = new NamedPipeServerStream(_pipeName, PipeDirection.InOut, 1, PipeTransmissionMode.Message, PipeOptions.Asynchronous, 4096, 4096, pipeSecurity))
{
_currentPipeStream = pipeStream;
_logger.Info("Waiting for client connection...");
await pipeStream.WaitForConnectionAsync(token);
OnClientConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Connected));
try
{
await ReadLoopAsync(pipeStream, token);
}
finally
{
OnClientConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Disconnected));
_currentPipeStream = null;
}
}
}
private async Task ReadLoopAsync(NamedPipeServerStream stream, CancellationToken token)
{
var buffer = new byte[1024];
try
{
while (stream.IsConnected && !token.IsCancellationRequested)
{
using (var memoryStream = new System.IO.MemoryStream())
{
int bytesRead;
// 循环读取，直到消息完整
do
{
// 读取当前可用的消息片段（可能是部分消息）
bytesRead = await stream.ReadAsync(buffer, 0, buffer.Length);
// 将读取到的片段写入内存流
if (bytesRead > 0)
{
memoryStream.Write(buffer, 0, bytesRead);
}
else
{
break;
}
// 检查消息是否读取完毕
} while (!stream.IsMessageComplete);
// 将内存流中的所有片段合并为完整消息
_receiveQueue.Add(memoryStream.ToArray(), token);
}
}
}
catch (IOException ex)
{
_logger.Warn(string.Format("Client disconnected with IO exception: {0}", ex.Message));
}
catch (OperationCanceledException) { /* Expected */ }
finally
{
_receiveQueue.CompleteAdding();
}
}
public byte[] Read() => _receiveQueue.Take();
public Task<byte[]> ReadAsync() => Task.Run(() => _receiveQueue.Take());
private void WriteInternal(byte[] message)
{
var pipe = _currentPipeStream;
if (pipe == null || !pipe.IsConnected) throw new InvalidOperationException("Pipe is not connected.");
byte[] buffer = new byte[message.Length];
Buffer.BlockCopy(message, 0, buffer, 0, message.Length);
pipe.Write(buffer, 0, buffer.Length);
}
private async Task WriteInternalAsync(byte[] message)
{
var pipe = _currentPipeStream;
if (pipe == null || !pipe.IsConnected) throw new InvalidOperationException("Pipe is not connected.");
byte[] buffer = new byte[message.Length];
Buffer.BlockCopy(message, 0, buffer, 0, message.Length);
await pipe.WriteAsync(buffer, 0, buffer.Length);
}
public void Write(byte[] message) => WriteInternal(message);
public Task WriteAsync(byte[] message) => WriteInternalAsync(message);
protected virtual void OnMessageReceived(byte[] e) => MessageReceived?.Invoke(this, e);
protected virtual void OnClientConnectionChanged(ConnectionChangedEventArgs e)
{
_logger.Info(string.Format("Client connection status changed to: {0}", e.Status));
ClientConnectionChanged?.Invoke(this, e);
}
public void Stop()
{
_logger.Info("Stopping server...");
_cancellationTokenSource?.Cancel();
// Unblock WaitForConnectionAsync by making a dummy connection
try
{
using (var dummy = new NamedPipeClientStream(".", _pipeName, PipeDirection.Out))
{
dummy.Connect(100);
}
}
catch { }
}
public void Dispose()
{
Stop();
_receiveQueue.Dispose();
_cancellationTokenSource?.Dispose();
}
}客户端代码NamedPipeIpcClient如下：
public class NamedPipeIpcClient : IDisposable
{
private readonly string _pipeName;
private readonly BlockingCollection<byte[]> _receiveQueue = new BlockingCollection<byte[]>();
private CancellationTokenSource _cancellationTokenSource;
private NamedPipeClientStream _pipeStream;
private readonly ILogger _logger;
public bool AutoReconnect { get; set; } = true;
public TimeSpan ReconnectInterval { get; set; } = TimeSpan.FromSeconds(5);
public event EventHandler<byte[]> MessageReceived;
public event EventHandler<ConnectionChangedEventArgs> ConnectionChanged;
public NamedPipeIpcClient(string pipeName, ILogger logger = null)
{
_pipeName = pipeName;
_logger = logger ?? new ConsoleLogger();
_cancellationTokenSource = new CancellationTokenSource();
}
public async Task ConnectAsync()
{
await AttemptConnectionAsync(_cancellationTokenSource.Token);
}
private async Task AttemptConnectionAsync(CancellationToken token)
{
OnConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Connecting));
try
{
_pipeStream = new NamedPipeClientStream(".", _pipeName, PipeDirection.InOut, PipeOptions.Asynchronous);
await _pipeStream.ConnectAsync(5000, token);
_pipeStream.ReadMode = PipeTransmissionMode.Message;
OnConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Connected));
Task.Run(() => ReadLoopAsync(token), token);
}
catch (Exception ex)
{
_logger.Error("Failed to connect to server.", ex);
HandleDisconnection();
}
}
private void HandleDisconnection()
{
OnConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Disconnected));
_pipeStream?.Dispose();
if (AutoReconnect && !_cancellationTokenSource.IsCancellationRequested)
{
_logger.Info(string.Format("Will attempt to reconnect in {0} seconds...", ReconnectInterval.TotalSeconds));
Task.Delay(ReconnectInterval, _cancellationTokenSource.Token)
.ContinueWith(t => AttemptConnectionAsync(_cancellationTokenSource.Token), TaskContinuationOptions.NotOnCanceled);
}
}
private async Task ReadLoopAsync(CancellationToken token)
{
try
{
while (_pipeStream.IsConnected && !token.IsCancellationRequested)
{
// 初始缓冲区（可根据实际场景调整大小）
byte[] buffer = new byte[1024];
// 用于累积消息片段的内存流
using (var memoryStream = new System.IO.MemoryStream())
{
int bytesRead;
// 循环读取，直到消息完整
do
{
// 读取当前可用的消息片段（可能是部分消息）
bytesRead = await _pipeStream.ReadAsync(buffer, 0, buffer.Length);
// 将读取到的片段写入内存流
if (bytesRead > 0)
{
memoryStream.Write(buffer, 0, bytesRead);
}
else
{
break;
}
// 检查消息是否读取完毕
} while (!_pipeStream.IsMessageComplete);
// 将内存流中的所有片段合并为完整消息
_receiveQueue.Add(memoryStream.ToArray(), token);
}
}
}
catch (Exception ex) when (ex is IOException || ex is OperationCanceledException)
{
_logger.Warn("Read loop ended due to disconnection or cancellation.");
}
finally
{
HandleDisconnection();
}
}
public byte[] Read() => _receiveQueue.Take();
public Task<byte[]> ReadAsync() => Task.Run(() => _receiveQueue.Take());
private void WriteInternal(byte[] message)
{
if (_pipeStream == null || !_pipeStream.IsConnected) throw new InvalidOperationException("Pipe is not connected.");
byte[] bytes = new byte[message.Length];
Buffer.BlockCopy(message, 0, bytes, 0, message.Length);
_pipeStream.Write(bytes, 0, bytes.Length);
}
private async Task WriteInternalAsync(byte[] message)
{
if (_pipeStream == null || !_pipeStream.IsConnected) throw new InvalidOperationException("Pipe is not connected.");
byte[] bytes = new byte[message.Length];
Buffer.BlockCopy(message, 0, bytes, 0, message.Length);
await _pipeStream.WriteAsync(bytes, 0, bytes.Length);
}
public void Write(byte[] message) => WriteInternal(message);
public Task WriteAsync(byte[] message) => WriteInternalAsync(message);
public void StartMessageListener()
{
Task.Run(() =>
{
foreach (var message in _receiveQueue.GetConsumingEnumerable(_cancellationTokenSource.Token))
{
OnMessageReceived(message);
}
});
}
protected virtual void OnMessageReceived(byte[] e) => MessageReceived?.Invoke(this, e);
protected virtual void OnConnectionChanged(ConnectionChangedEventArgs e)
{
_logger.Info(string.Format("Connection status changed to: {0}", e.Status));
ConnectionChanged?.Invoke(this, e);
}
public void Disconnect()
{
_logger.Info("Disconnecting...");
_cancellationTokenSource?.Cancel();
_pipeStream?.Dispose();
}
public void Dispose()
{
Disconnect();
_receiveQueue.Dispose();
_cancellationTokenSource?.Dispose();
}
}需要注意的是，上面采用的是消息模式来 PipeTransmissionMode.Message 处理消息，所以发送的时候直接发送，不需要手动计算和打包消息长度头。但读取的时候，要放在while循环里读取，直到本条消息读取完成。如果使用的是PipeTransmissionMode.Byte，则需要自己来处理消息的分帧，通用的处理策略是发送每条消息时，把消息长度和消息体打包到一起发送，在读取时，先读取4个字节的消息长度，然后再根据消息长度读取剩余的消息体。
TCP/IP 套接字
原理
TCP/IP 套接字是计算机网络领域的事实标准。当通信双方位于同一台主机时，可以通过环回接口（127.0.0.1）将其用作一种 IPC 机制。
- 环回路径及其伴随开销：当一个进程向环回地址发送数据时，数据依然会完整地执行 TCP/IP 协议栈的大部分逻辑，包括数据封装、校验和计算、连接管理以及流量控制 。所有这些步骤都会消耗 CPU 周期和内存资源，导致其在本地通信中的固有开销和延迟高于命名管道 。
- 消息分帧的至关键要：TCP 是一个面向流（Stream-Oriented）的协议，而非面向消息（Message-Oriented）的协议 。这意味着 TCP 完全不保证消息边界。因此，任何一个健壮的基于 TCP 的应用层协议，都 必须实现自己的消息分帧（Message Framing）机制。最常用且高效的策略是长度前缀协议（Length-Prefix Framing） 。
- 多范式通信接口设计：与命名管道的实现类似，我们的 TCP/IP 封装也将提供同步、异步和事件驱动的通信方法。基于 NetworkStream 和手动缓冲区管理，使用 async/await 来构建一个高效的异步 I/O 循环，该循环负责实现长度前缀协议。
- 企业环境下的安全考量与端口管理：本地 TCP/IP 通信存在天然的安全短板。一个监听在 127.0.0.1:port 的服务对本机所有进程都是可见的。这意味着应用层安全是必须的，开发者必须自行设计和实现身份验证与授权机制。此外，在服务密集的服务器上，端口冲突与管理也是一项重要的运维工作 。
实现
TCP/IP C# 代码实现如下，先看服务端：
public class TcpIpcServer : IDisposable
{
private readonly IPAddress _ipAddress;
private readonly int _port;
private readonly BlockingCollection<byte[]> _receiveQueue = new BlockingCollection<byte[]>();
private TcpListener _listener;
private CancellationTokenSource _cancellationTokenSource;
private readonly ILogger _logger;
public event EventHandler<byte[]> MessageReceived;
public event EventHandler<ConnectionChangedEventArgs> ClientConnectionChanged;
private TcpClient _currentClient; // For Write operations
public TcpIpcServer(string ipAddress, int port, ILogger logger = null)
{
_ipAddress = IPAddress.Parse(ipAddress);
_port = port;
_logger = logger ?? new ConsoleLogger();
}
public void Start()
{
_cancellationTokenSource = new CancellationTokenSource();
_listener = new TcpListener(_ipAddress, _port);
_listener.Start();
Task.Run(() => ListenForClientsAsync(_cancellationTokenSource.Token));
_logger.Info(string.Format("Server started on {0}:{1}.", _ipAddress, _port));
}
public void StartMessageListener()
{
Task.Run(() =>
{
foreach (var message in _receiveQueue.GetConsumingEnumerable(_cancellationTokenSource.Token))
{
OnMessageReceived(message);
}
});
}
private async Task ListenForClientsAsync(CancellationToken token)
{
try
{
while (!token.IsCancellationRequested)
{
_logger.Info("Waiting for client connection...");
var client = await _listener.AcceptTcpClientAsync();
_logger.Info(string.Format("Client connected from {0}.", client.Client.RemoteEndPoint));
// For 1-to-1, close previous connection if any
_currentClient?.Close();
_currentClient = client;
// Handle each client in a new task
Task.Run(() => HandleClientAsync(client, token), token);
}
}
catch (OperationCanceledException) { /* Expected */ }
catch (Exception ex)
{
_logger.Error("Error in listener loop.", ex);
}
}
private async Task HandleClientAsync(TcpClient client, CancellationToken token)
{
OnClientConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Connected));
try
{
using (client)
using (var stream = client.GetStream())
{
await ReadLoopAsync(stream, token);
}
}
catch (Exception ex)
{
_logger.Error("Error handling client.", ex);
}
finally
{
OnClientConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Disconnected));
if (_currentClient == client)
{
_currentClient = null;
}
}
}
private async Task ReadLoopAsync(NetworkStream stream, CancellationToken token)
{
try
{
while (!token.IsCancellationRequested)
{
var lengthPrefix = new byte[4];
await ReadExactBytesAsync(stream, lengthPrefix, 4, token);
var messageLength = BitConverter.ToInt32(lengthPrefix, 0);
var messageBuffer = new byte[messageLength];
await ReadExactBytesAsync(stream, messageBuffer, messageLength, token);
_receiveQueue.Add(messageBuffer, token);
}
}
catch (IOException ex) { _logger.Warn(string.Format("Client disconnected with IO exception: {0}", ex.Message)); }
catch (OperationCanceledException) { /* Expected */ }
finally { _receiveQueue.CompleteAdding(); }
}
public byte[] Read()
{
return _receiveQueue.Take();
}
public Task<byte[]> ReadAsync()
{
return Task.Run(() => _receiveQueue.Take());
}
private void WriteInternal(byte[] message)
{
if (_currentClient == null || !_currentClient.Connected) throw new InvalidOperationException("Client not connected.");
var stream = _currentClient.GetStream();
var lengthPrefix = BitConverter.GetBytes(message.Length);
stream.Write(lengthPrefix, 0, 4);
stream.Write(message, 0, message.Length);
}
private async Task WriteInternalAsync(byte[] message)
{
if (_currentClient == null || !_currentClient.Connected) throw new InvalidOperationException("Client not connected.");
var stream = _currentClient.GetStream();
var lengthPrefix = BitConverter.GetBytes(message.Length);
await stream.WriteAsync(lengthPrefix, 0, 4);
await stream.WriteAsync(message, 0, message.Length);
}
public void Write(byte[] message) => WriteInternal(message);
public Task WriteAsync(byte[] message) => WriteInternalAsync(message);
private static async Task ReadExactBytesAsync(NetworkStream stream, byte[] buffer, int bytesToRead, CancellationToken token)
{
int offset = 0;
while (offset < bytesToRead)
{
int bytesRead = await stream.ReadAsync(buffer, offset, bytesToRead - offset, token);
if (bytesRead == 0) throw new EndOfStreamException();
offset += bytesRead;
}
}
protected virtual void OnMessageReceived(byte[] e)
{
var handler = MessageReceived;
if (handler != null)
{
handler(this, e);
}
}
protected virtual void OnClientConnectionChanged(ConnectionChangedEventArgs e)
{
_logger.Info(string.Format("Client connection status changed to: {0}", e.Status));
ClientConnectionChanged?.Invoke(this, e);
}
public void Stop()
{
_logger.Info("Stopping server...");
_cancellationTokenSource?.Cancel();
_listener?.Stop();
_currentClient?.Close();
}
public void Dispose()
{
Stop();
_receiveQueue.Dispose();
_cancellationTokenSource?.Dispose();
}
}接下来是客户端实现：
public class TcpIpcClient : IDisposable
{
private readonly string _serverAddress;
private readonly int _port;
private readonly BlockingCollection<byte[]> _receiveQueue = new BlockingCollection<byte[]>();
private TcpClient _client;
private NetworkStream _stream;
private CancellationTokenSource _cancellationTokenSource;
private readonly ILogger _logger;
public bool AutoReconnect { get; set; } = true;
public TimeSpan ReconnectInterval { get; set; } = TimeSpan.FromSeconds(5);
public event EventHandler<byte[]> MessageReceived;
public event EventHandler<ConnectionChangedEventArgs> ConnectionChanged;
public TcpIpcClient(string serverAddress, int port, ILogger logger = null)
{
_serverAddress = serverAddress;
_port = port;
_logger = logger ?? new ConsoleLogger();
}
public async Task ConnectAsync()
{
_cancellationTokenSource = new CancellationTokenSource();
await AttemptConnectionAsync(_cancellationTokenSource.Token);
}
public void StartMessageListener()
{
Task.Run(() =>
{
foreach (var message in _receiveQueue.GetConsumingEnumerable(_cancellationTokenSource.Token))
{
OnMessageReceived(message);
}
});
}
private async Task AttemptConnectionAsync(CancellationToken token)
{
OnConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Connecting));
try
{
_client = new TcpClient();
await _client.ConnectAsync(_serverAddress, _port);
_stream = _client.GetStream();
OnConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Connected));
Task.Run(() => ReadLoopAsync(token), token);
}
catch (Exception ex)
{
_logger.Error("Failed to connect to server.", ex);
HandleDisconnection();
}
}
private void HandleDisconnection()
{
OnConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Disconnected));
_stream?.Dispose();
_client?.Close();
if (AutoReconnect && !_cancellationTokenSource.IsCancellationRequested)
{
_logger.Info(string.Format("Will attempt to reconnect in {0} seconds...", ReconnectInterval.TotalSeconds));
Task.Delay(ReconnectInterval, _cancellationTokenSource.Token)
.ContinueWith(t => AttemptConnectionAsync(_cancellationTokenSource.Token), TaskContinuationOptions.NotOnCanceled);
}
}
private async Task ReadLoopAsync(CancellationToken token)
{
try
{
while (!token.IsCancellationRequested)
{
var lengthPrefix = new byte[4];
await ReadExactBytesAsync(_stream, lengthPrefix, 4, token);
var messageLength = BitConverter.ToInt32(lengthPrefix, 0);
var messageBuffer = new byte[messageLength];
await ReadExactBytesAsync(_stream, messageBuffer, messageLength, token);
_receiveQueue.Add(messageBuffer, token);
}
}
catch (Exception ex) when (ex is IOException || ex is OperationCanceledException || ex is EndOfStreamException)
{
_logger.Warn("Read loop ended due to disconnection or cancellation.");
}
finally
{
HandleDisconnection();
}
}
public byte[] Read()
{
return _receiveQueue.Take();
}
public Task<byte[]> ReadAsync()
{
return Task.Run(() => _receiveQueue.Take());
}
public void Write(byte[] message)
{
if (_stream == null) throw new InvalidOperationException("Not connected.");
var lengthPrefix = BitConverter.GetBytes(message.Length);
_stream.Write(lengthPrefix, 0, 4);
_stream.Write(message, 0, message.Length);
}
public async Task WriteAsync(byte[] message)
{
if (_stream == null) throw new InvalidOperationException("Not connected.");
var lengthPrefix = BitConverter.GetBytes(message.Length);
await _stream.WriteAsync(lengthPrefix, 0, 4);
await _stream.WriteAsync(message, 0, message.Length);
}
private static async Task ReadExactBytesAsync(NetworkStream stream, byte[] buffer, int bytesToRead, CancellationToken token)
{
int offset = 0;
while (offset < bytesToRead)
{
int bytesRead = await stream.ReadAsync(buffer, offset, bytesToRead - offset, token);
if (bytesRead == 0) throw new EndOfStreamException();
offset += bytesRead;
}
}
protected virtual void OnMessageReceived(byte[] e)
{
var handler = MessageReceived;
if (handler != null)
{
handler(this, e);
}
}
protected virtual void OnConnectionChanged(ConnectionChangedEventArgs e)
{
_logger.Info(string.Format("Connection status changed to: {0}", e.Status));
ConnectionChanged?.Invoke(this, e);
}
public void Disconnect()
{
_logger.Info("Disconnecting...");
_cancellationTokenSource?.Cancel();
_stream?.Dispose();
_client?.Close();
}
public void Dispose()
{
Disconnect();
_receiveQueue.Dispose();
_cancellationTokenSource?.Dispose();
}
}内存映射文件
首先实现一个针对MMF读取写入的环形缓冲区实现，代码如下：
/// <summary>
/// A lock-free, single-producer, single-consumer circular buffer for IPC using a Memory-Mapped File.
/// This implementation handles message wrap-around.
/// </summary>
public sealed unsafe class LockFreeCircularBuffer : IDisposable
{
[StructLayout(LayoutKind.Explicit)]
private struct Header
{
[FieldOffset(0)]
public int Capacity;
[FieldOffset(4)]
public int Head; // Read position
[FieldOffset(8)]
public int Tail; // Write position
}
private readonly MemoryMappedFile _mmf;
private readonly MemoryMappedViewAccessor _accessor;
private readonly EventWaitHandle _dataAvailableEvent;
private readonly int _capacity;
private readonly int _bufferSize;
private readonly int _headerSize;
public WaitHandle ReadWaitHandle => _dataAvailableEvent;
public LockFreeCircularBuffer(string name, int capacity = 1024 * 1024)
{
_capacity = capacity;
_bufferSize = capacity;
_headerSize = Marshal.SizeOf(typeof(Header));
long totalSize = _headerSize + _bufferSize;
_mmf = MemoryMappedFile.CreateOrOpen(name, totalSize);
_accessor = _mmf.CreateViewAccessor();
_dataAvailableEvent = new EventWaitHandle(false, EventResetMode.AutoReset, name + "_evt");
if (IsCreator())
{
var header = new Header { Capacity = _capacity, Head = 0, Tail = 0 };
_accessor.Write(0, ref header);
}
else
{
Header header;
_accessor.Read(0, out header);
if (header.Capacity != _capacity)
{
throw new InvalidOperationException("Circular buffer capacity does not match existing instance.");
}
}
}
private bool IsCreator()
{
return _accessor.ReadInt32(0) == 0;
}
public bool TryWrite(byte[] data)
{
int head;
int tail;
int nextTail;
Header* header = null;
try
{
header = GetHeaderPointer();
head = Thread.VolatileRead(ref header->Head);
tail = Thread.VolatileRead(ref header->Tail);
int messageLength = data.Length;
int requiredSpace = messageLength + 4; // +4 for length prefix
int freeSpace;
if (head > tail)
freeSpace = head - tail - 1;
else
freeSpace = _capacity - tail + head - 1;
//int freeSpace = (head - tail - 1 + _capacity) % _capacity;
if (freeSpace < requiredSpace) // +4 for length prefix
{
return false; // Not enough space
}
// Write the message length
byte[] lengthBytes = BitConverter.GetBytes(messageLength);
WriteBytes(tail, lengthBytes);
nextTail = (tail + 4) % _capacity;
// Write the message data, handling wrap-around
WriteBytes(nextTail, data);
nextTail = (nextTail + messageLength) % _capacity;
// Atomically update the tail pointer
Interlocked.Exchange(ref header->Tail, nextTail);
}
finally
{
if (header != null)
_accessor.SafeMemoryMappedViewHandle.ReleasePointer();
}
_dataAvailableEvent.Set();
return true;
}
public bool TryRead(out byte[] data)
{
data = null;
int head;
int tail;
int nextHead;
Header* header = null;
try
{
header = GetHeaderPointer();
head = Thread.VolatileRead(ref header->Head);
tail = Thread.VolatileRead(ref header->Tail);
if (head == tail)
{
return false; // Buffer is empty
}
// Read message length
byte[] lengthBytes = ReadBytes(head, 4);
int messageLength = BitConverter.ToInt32(lengthBytes, 0);
nextHead = (head + 4) % _capacity;
// Read message data, handling wrap-around
data = ReadBytes(nextHead, messageLength);
nextHead = (nextHead + messageLength) % _capacity;
// Atomically update the head pointer
Interlocked.Exchange(ref header->Head, nextHead);
}
finally
{
if (header != null)
_accessor.SafeMemoryMappedViewHandle.ReleasePointer();
}
return true;
}
private void WriteBytes(int position, byte[] data)
{
int firstChunkSize = Math.Min(data.Length, _capacity - position);
_accessor.WriteArray(_headerSize + position, data, 0, firstChunkSize);
if (firstChunkSize < data.Length)
{
int remaining = data.Length - firstChunkSize;
_accessor.WriteArray(_headerSize, data, firstChunkSize, remaining);
}
}
private byte[] ReadBytes(int position, int count)
{
byte[] buffer = new byte[count];
int firstChunkSize = Math.Min(count, _capacity - position);
_accessor.ReadArray(_headerSize + position, buffer, 0, firstChunkSize);
if (firstChunkSize < count)
{
int remaining = count - firstChunkSize;
_accessor.ReadArray(_headerSize, buffer, firstChunkSize, remaining);
}
return buffer;
}
private unsafe Header* GetHeaderPointer()
{
byte* ptr = null;
_accessor.SafeMemoryMappedViewHandle.AcquirePointer(ref ptr);
if (ptr == null)
{
return null;
}
return (Header*)ptr;
}
public void Dispose()
{
_dataAvailableEvent?.Close();
_accessor?.Dispose();
_mmf?.Dispose();
}
}基于上述结构，服务端代码MmfIpcServer如下：
public class MmfIpcServer : IDisposable
{
private readonly string _channelName;
private readonly BlockingCollection<byte[]> _receiveQueue = new BlockingCollection<byte[]>();
private CancellationTokenSource _cancellationTokenSource;
private readonly ILogger _logger;
private LockFreeCircularBuffer _receiveBuffer; // Client -> Server
private LockFreeCircularBuffer _sendBuffer; // Server -> Client
public event EventHandler<byte[]> MessageReceived;
public event EventHandler<ConnectionChangedEventArgs> ClientConnectionChanged;
public MmfIpcServer(string channelName, ILogger logger = null)
{
_channelName = channelName;
_logger = logger ?? new ConsoleLogger();
}
public void Start()
{
_cancellationTokenSource = new CancellationTokenSource();
_receiveBuffer = new LockFreeCircularBuffer(_channelName + "_C2S");
_sendBuffer = new LockFreeCircularBuffer(_channelName + "_S2C");
Task.Run(() => ReadLoop(_cancellationTokenSource.Token));
_logger.Info("MMF Server started.");
OnClientConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Connected));
}
public void StartMessageListener()
{
Task.Run(() =>
{
foreach (var message in _receiveQueue.GetConsumingEnumerable(_cancellationTokenSource.Token))
{
OnMessageReceived(message);
}
});
}
private void ReadLoop(CancellationToken token)
{
while (!token.IsCancellationRequested)
{
try
{
if (_receiveBuffer.ReadWaitHandle.WaitOne(1000))
{
byte[] buffer;
while (_receiveBuffer.TryRead(out buffer) && !token.IsCancellationRequested)
{
if (buffer != null && buffer.Length > 0)
_receiveQueue.Add(buffer, token);
}
}
}
catch (OperationCanceledException) { break; }
catch (Exception ex) { _logger.Error("MMF Server Read Error: ", ex); }
}
_receiveQueue.CompleteAdding();
}
public byte[] Read() => _receiveQueue.Take();
public Task<byte[]> ReadAsync() => Task.Run(() => _receiveQueue.Take());
private void WriteInternal(byte[] message)
{
if (!_sendBuffer.TryWrite(message))
{
_logger.Warn("MMF send buffer is full. Message dropped.");
}
}
public void Write(byte[] message) => WriteInternal(message);
public Task WriteAsync(byte[] message) => Task.Run(() => WriteInternal(message));
protected virtual void OnMessageReceived(byte[] e) => MessageReceived?.Invoke(this, e);
protected virtual void OnClientConnectionChanged(ConnectionChangedEventArgs e) => ClientConnectionChanged?.Invoke(this, e);
public void Stop()
{
_logger.Info("Stopping MMF server...");
_cancellationTokenSource?.Cancel();
OnClientConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Disconnected));
}
public void Dispose()
{
Stop();
_receiveBuffer?.Dispose();
_sendBuffer?.Dispose();
_receiveQueue.Dispose();
_cancellationTokenSource?.Dispose();
}
}客户端MmfIpcClient代码如下：
public class MmfIpcClient : IDisposable
{
private readonly string _channelName;
private readonly BlockingCollection<byte[]> _receiveQueue = new BlockingCollection<byte[]>();
private CancellationTokenSource _cancellationTokenSource;
private readonly ILogger _logger;
private LockFreeCircularBuffer _sendBuffer;
private LockFreeCircularBuffer _receiveBuffer;
public bool AutoReconnect { get; set; } = true;
public TimeSpan ReconnectInterval { get; set; } = TimeSpan.FromSeconds(5);
public event EventHandler<byte[]> MessageReceived;
public event EventHandler<ConnectionChangedEventArgs> ConnectionChanged;
public MmfIpcClient(string channelName, ILogger logger = null)
{
_channelName = channelName;
_logger = logger ?? new ConsoleLogger();
}
public async Task ConnectAsync()
{
_cancellationTokenSource = new CancellationTokenSource();
await AttemptConnectionAsync(_cancellationTokenSource.Token);
}
private async Task AttemptConnectionAsync(CancellationToken token)
{
OnConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Connecting));
while (!token.IsCancellationRequested)
{
try
{
_sendBuffer = new LockFreeCircularBuffer(_channelName + "_C2S");
_receiveBuffer = new LockFreeCircularBuffer(_channelName + "_S2C");
OnConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Connected));
Task.Run(() => ReadLoop(token), token);
return;
}
catch (Exception ex)
{
_logger.Error("Failed to connect to MMF server.", ex);
HandleDisconnection(false);
if (!AutoReconnect) break;
_logger.Info(string.Format("Will attempt to reconnect in {0} seconds...", ReconnectInterval.TotalSeconds));
await Task.Delay(ReconnectInterval, token);
}
}
}
private void HandleDisconnection(bool triggerReconnect)
{
OnConnectionChanged(new ConnectionChangedEventArgs(ConnectionStatus.Disconnected));
_sendBuffer?.Dispose();
_receiveBuffer?.Dispose();
if (AutoReconnect && triggerReconnect && !_cancellationTokenSource.IsCancellationRequested)
{
Task.Run(() => AttemptConnectionAsync(_cancellationTokenSource.Token));
}
}
private void ReadLoop(CancellationToken token)
{
while (!token.IsCancellationRequested)
{
try
{
if (_receiveBuffer.ReadWaitHandle.WaitOne(1000))
{
byte[] buffer;
while (_receiveBuffer.TryRead(out buffer) && !token.IsCancellationRequested)
{
_receiveQueue.Add(buffer, token);
}
}
}
catch (Exception ex)
{
_logger.Error("MMF Client Read Error: ", ex);
HandleDisconnection(true);
break;
}
}
_receiveQueue.CompleteAdding();
}
public byte[] Read() => _receiveQueue.Take();
public Task<byte[]> ReadAsync() => Task.Run(() => _receiveQueue.Take());
private void WriteInternal(byte[] message)
{
if (_sendBuffer == null) throw new InvalidOperationException("Not connected.");
if (!_sendBuffer.TryWrite(message))
{
_logger.Warn("MMF send buffer is full. Message dropped.");
}
}
public void Write(byte[] message) => WriteInternal(message);
public Task WriteAsync(byte[] message) => Task.Run(() => WriteInternal(message));
public void StartMessageListener()
{
Task.Run(() =>
{
foreach (var message in _receiveQueue.GetConsumingEnumerable(_cancellationTokenSource.Token))
{
OnMessageReceived(message);
}
});
}
protected virtual void OnMessageReceived(byte[] e) => MessageReceived?.Invoke(this, e);
protected virtual void OnConnectionChanged(ConnectionChangedEventArgs e)
{
_logger.Info(string.Format("Connection status changed to: {0}", e.Status));
ConnectionChanged?.Invoke(this, e);
}
public void Disconnect()
{
_logger.Info("Disconnecting...");
_cancellationTokenSource?.Cancel();
}
public void Dispose()
{
Disconnect();
_sendBuffer?.Dispose();
_receiveBuffer?.Dispose();
_receiveQueue.Dispose();
_cancellationTokenSource?.Dispose();
}
}性能实证分析
测试原则
为了对这三个IPC方法的性能进行量化评估，这里提供了一个基于 BenchmarkDotNet 的基准测试。基准测试的方法如下：
- 测试框架：基于 BenchmarkDotNet。
- 测试场景: 模拟一个典型的一对一、请求-响应（“乒乓”）场景。客户端发送一条消息，服务端收到后立即将完全相同的消息返回。测量完成一次“往返（Round-Trip）”所需的时间。
- 测试实现: 为了隔离 IPC 传输本身的开销，基准测试将直接操作 byte，避免 JSON 序列化的影响。
- 测试参数: 测试将在多种不同的消息负载（Payload）大小下运行：16 字节、256 字节、4 KB 和 16 KB。
基准测试代码
首先是BenchmarkBase代码，这是三个测试基准代码的基类：
public abstract class BenchmarkBase
{
protected ILogger _logger = new ConsoleLogger();
protected byte[] _payload;
[Params(16, 256, 4096, 16384)]
public int PayloadSize { get; set; }
[GlobalSetup]
public void GlobalSetup()
{
_payload = new byte[PayloadSize];
new Random(42).NextBytes(_payload);
Setup();
}
[GlobalCleanup]
public void GlobalCleanup()
{
Cleanup();
}
public abstract void Setup();
public abstract void Cleanup();
}如果觉得4个不同大小的参数不够，还可以以步长的方式指定，比如：
public IEnumerable<int> Values => Enumerable.Range(1, 1024).Select(x => x * 16);
[ParamsSource(nameof(Values))]
public int PayloadSize { get; set; }则表示PayloadSize会从16开始，每隔16，一直到1024×16。
测试是以客户端发送消息，服务端收到消息之后回传给客户端，客户端收到发送的消息为一次测试，也称之为”乒乓“测试。在代码中的做法就是定义一个AutoResetEvent，当客户端发送之后等待这个AutoResetEvent，等客户端再次接收到消息，触发AutoResetEvent事件，然后等待的方法收到事件后结束。
NamedPipeBenchmark的代码如下：
public class NamedPipeBenchmark : BenchmarkBase
{
private NamedPipeIpcServer _server;
private NamedPipeIpcClient _client;
private const string PipeName = "ipc-benchmark-pipe";
private AutoResetEvent receiveMessage = new AutoResetEvent(false);
public override void Setup()
{
_server = new NamedPipeIpcServer(PipeName, _logger);
_server.MessageReceived += (s, e) =>
{
_server.Write(e); // Echo server
};
_server.Start();
_server.StartMessageListener();
// Give server time to start
Task.Delay(2000).Wait();
_client = new NamedPipeIpcClient(PipeName, _logger);
_client.MessageReceived += (s, e) =>
{
receiveMessage.Set();
}; // Signal when a message is received
_client.ConnectAsync().Wait();
_client.StartMessageListener();
Task.Delay(2000).Wait();
}
public override void Cleanup()
{
_client.Dispose();
_server.Dispose();
}
[Benchmark(Baseline = true)]
public void PingPong()
{
_client.Write(_payload);
receiveMessage.WaitOne(); // Wait for the message to be received
}
}TcpBenchmark 代码如下：
public class TcpBenchmark : BenchmarkBase
{
private TcpIpcServer _server;
private TcpIpcClient _client;
private const string Ip = "127.0.0.1";
private const int Port = 9999;
private AutoResetEvent receiveMessage = new AutoResetEvent(false);
public override void Setup()
{
_server = new TcpIpcServer(Ip, Port, _logger);
_server.MessageReceived += (s, e) =>
{
_server.Write(e); // Echo server
};
_server.Start();
_server.StartMessageListener();
// Give server time to start
Task.Delay(2000).Wait();
_client = new TcpIpcClient(Ip, Port, _logger);
_client.MessageReceived += (s, e) =>
{
receiveMessage.Set();
}; // Signal when a message is received
_client.ConnectAsync().Wait();
_client.StartMessageListener();
Task.Delay(2000).Wait();
}
public override void Cleanup()
{
_client.Dispose();
_server.Dispose();
}
[Benchmark]
public void PingPong()
{
_client.Write(_payload);
receiveMessage.WaitOne(); // Wait for the message to be received()
}
}MmfBenchmark代码如下：
public class MmfBenchmark : BenchmarkBase
{
private MmfIpcServer _server;
private MmfIpcClient _client;
private const string ChannelName = "ipc-benchmark-mmf";
private AutoResetEvent receiveMessage = new AutoResetEvent(false);
public override void Setup()
{
_server = new MmfIpcServer(ChannelName, _logger);
_server.MessageReceived += (s, e) =>
{
_server.Write(e); // Echo server
};
_server.Start();
_server.StartMessageListener();
// Give server time to start
Task.Delay(2000).Wait();
_client = new MmfIpcClient(ChannelName, _logger);
_client.MessageReceived += (s, e) => receiveMessage.Set(); // Signal when a message is received
_client.ConnectAsync().Wait();
//如果是采用异步读取触发，则需要调用下卖弄的方法
_client.StartMessageListener();
Task.Delay(2000).Wait();
}
public override void Cleanup()
{
_client.Dispose();
_server.Dispose();
}
[Benchmark]
public void PingPong()
{
_client.Write(_payload);
receiveMessage.WaitOne(); // Wait for the message to be received
}
}主测试的代码如下：
static void Main(string[] args)
{
Console.WriteLine("Running Named Pipe Benchmark...");
BenchmarkRunner.Run<NamedPipeBenchmark>();
Console.WriteLine("\nRunning TCP Benchmark...");
BenchmarkRunner.Run<TcpBenchmark>();
Console.WriteLine("\nRunning MMF Benchmark...");
BenchmarkRunner.Run<MmfBenchmark>();
Console.ReadLine();
}以Release条件编译，就可以直接运行输出结果了。
在运行测试期间如果报错，可以用以下方式debug，比如：
NamedPipeBenchmark b = new NamedPipeBenchmark();
b.PayloadSize = 4096;
b.GlobalSetup();
b.PingPong();然后调试即可。
性能结果与分析
在以下条件基准下：
BenchmarkDotNet v0.15.2, Windows 11 (10.0.26100.4652/24H2/2024Update/HudsonValley)
Intel Core i7-14700 2.10GHz, 1 CPU, 28 logical and 20 physical cores
[Host] : .NET Framework 4.8.1 (4.8.9310.0), X86 LegacyJIT
DefaultJob : .NET Framework 4.8.1 (4.8.9310.0), X86 LegacyJIT测试结果如下：
| PayloadSize | MMF | TCPIP | NamedPipe|
|--------------|------------|----------|-------------|
| 16B | 40.04 μs | 64.08 μs | 47.95 μs |
| 256B | 43.75 μs | 65.84 μs | 46.85 μs |
| 4096B | 101.45 μs | 67.82 μs | 46.41 μs |
| 16384B | 252.39 μs | 73.12 μs | 58.69 μs |
分析：
- 小负载 (16B, 256B): MMF的绝对优势。对于小消息，总延迟主要由固定的系统调用开销决定。MMF 的无锁实现开销极低，因此性能遥遥领先。
- 大负载 (4KB, 16KB): 性能反转。当负载增大，数据拷贝的成本成为主导因素。
- 命名管道/TCP: 它们的数据拷贝在操作系统内核中完成，由高度优化的原生代码执行，效率极高。
- MMF (自研实现): 我们的实现虽然避免了用户态/内核态的切换拷贝，但从托管 byte 到共享内存视图的拷贝是通过 MemoryMappedViewAccessor 完成的。这个过程，特别是当需要处理回环而将一次写入拆分为两次物理拷贝时，其效率可能低于内核为管道和套接字提供的、一次性的原生内存拷贝。
- MMF 是低延迟、高频、中小负载场景下的性能之王。对于大块数据的持续流式传输，命名管道可能凭借其高效的内核拷贝机制提供更强的吞吐量。TCP 因其协议栈开销，在所有本地场景下都是最慢的。
最终结论

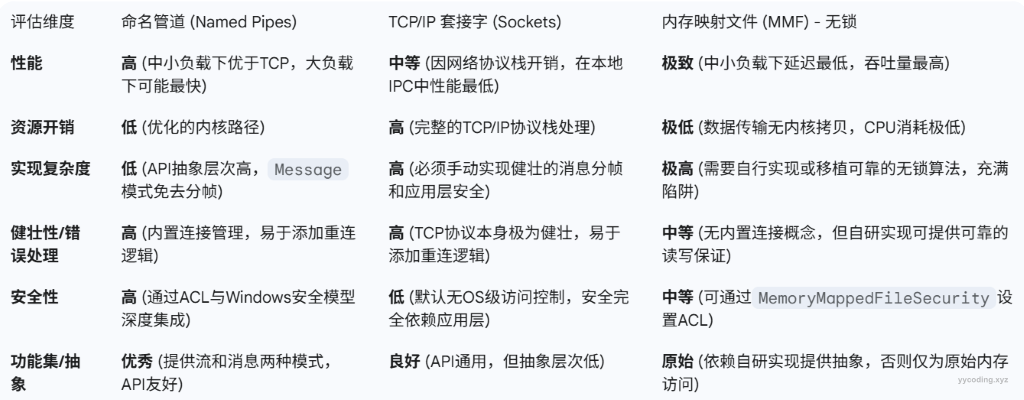

各种IPC方式的比较如下：
基于场景的选型建议：
场景一：标准服务与应用通信
- 描述：一个在后台运行的 Windows 服务需要与一个桌面 UI 应用进行通信；或者一个主应用程序需要与多个插件进行交互。通信频率适中，数据量不大，但要求可靠和安全。
- 推荐：命名管道 (Named Pipes)
- 理由：这是命名管道的“甜点区”。它提供了远超 TCP 的性能和更适合本地通信的轻量级协议。其内置的 Message 模式和基于 ACL 的安全模型，完美解决了分帧和安全这两大难题，极大地降低了开发成本和风险。对于绝大多数本地 C/S 架构，命名管道应是首选方案。
场景二：超低延迟、高频交易或实时数据处理
- 描述：金融领域的高频交易系统、科学计算中的实时数据采集与分析等场景，对延迟极其敏感，且消息通常为中小型。
- 推荐：内存映射文件（采用无锁环形缓冲区）
- 理由：在性能是唯一且压倒一切的考量因素时，MMF 是唯一的选择。其“零拷贝”和无锁特性提供了物理硬件所能支持的性能极限。但需注意，对于持续传输数 KB 以上的大块数据，应进行基准测试以确认其性能是否优于命名管道。
场景三：快速原型开发或未来可能网络化
- 描述：一个项目初期，需要快速搭建一个 IPC 通道进行功能验证；或者架构上预留了未来将服务拆分并部署到不同机器的可能性。
- 推荐：TCP/IP 套接字（但需高度警惕）
- 理由：TCP API 的通用性使其成为一个看似便捷的选择。然而，决策者必须清醒地认识到，为了使本地通信正确工作，团队必须投入时间去实现消息分帧和应用层安全。如果应用长期内都只在本地运行，那么 TCP 是一个次优选择。
场景四：多进程共享大型静态数据集
- 描述：一个大型的、数 GB 的数据集被一个进程加载到内存后，需要被多个其他只读进程频繁访问。
- 推荐：内存映射文件（采用持久化 MMF 和简单锁）
- 理由：这是 MMF 的另一个理想应用场景。通过将磁盘文件映射到内存，可以避免每个进程都将整个文件加载到自己的私有内存中，从而极大地节省了物理 RAM。由于数据主要是写入一次、读取多次，同步逻辑可以大大简化，使用基于 Mutex 的简单锁机制即可。
C# 本地进程间通信领域，不存在“一种通用”的最佳方案，而是存在一个基于具体需求的“最优”选择。
- 内存映射文件（MMF） 是无可争议的低延迟之王，尤其是在处理高频率、中小型消息时，但它要求使用者具备驾驭底层并发编程的深厚功力。
- TCP/IP 套接字，在高性能本地 IPC 场景中，其表现更像是一个有着沉重负担的协议。协议栈的开销和必需的应用层协议开发，使其成为效率和开发成本上都相对较差的选择。
- 命名管道则扮演了更加务实的角色。它在性能、安全性和易用性之间取得了卓越的平衡，为绝大多数企业级应用提供了最合理的、风险收益比最高的解决方案，并在传输大块数据时可能展现出最佳的吞吐量。
